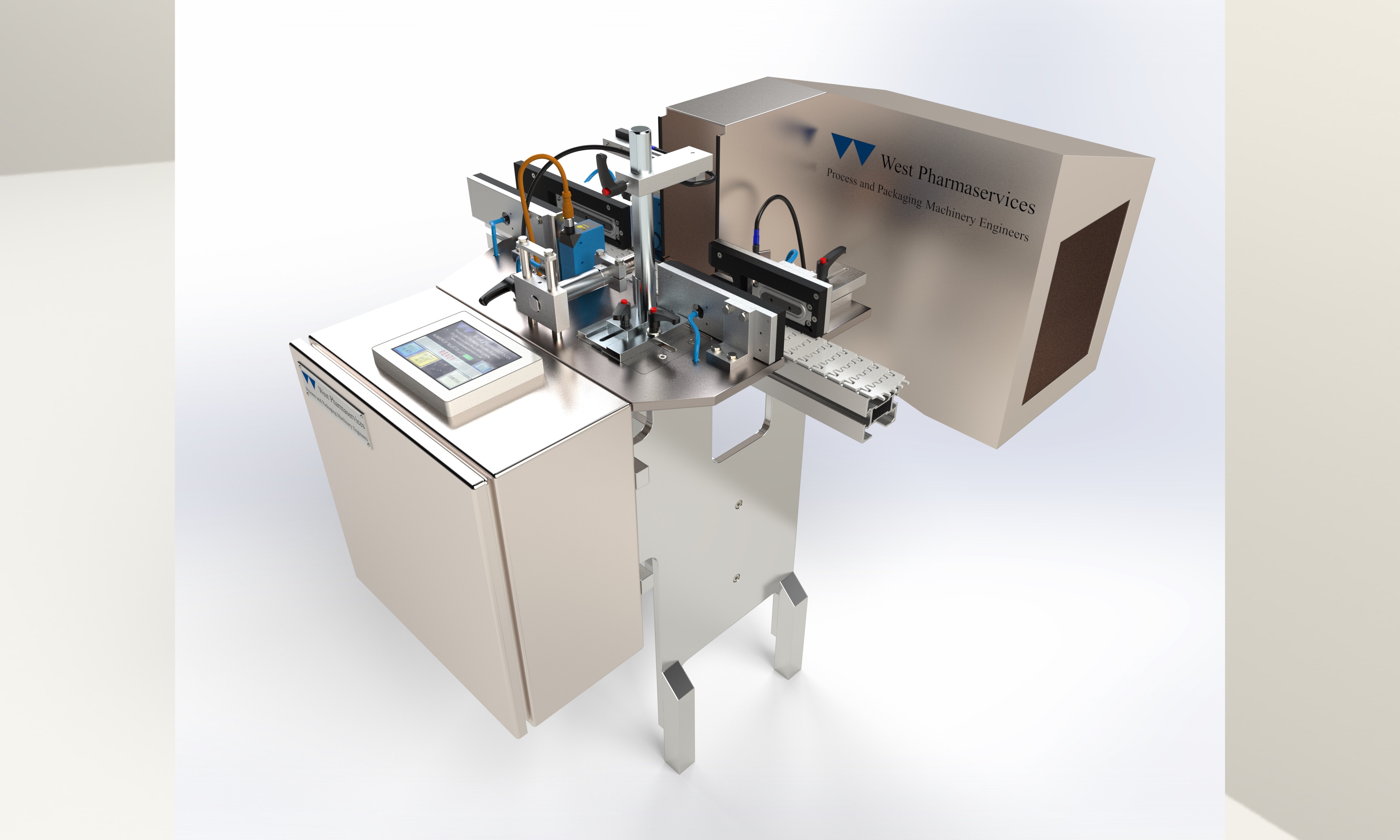

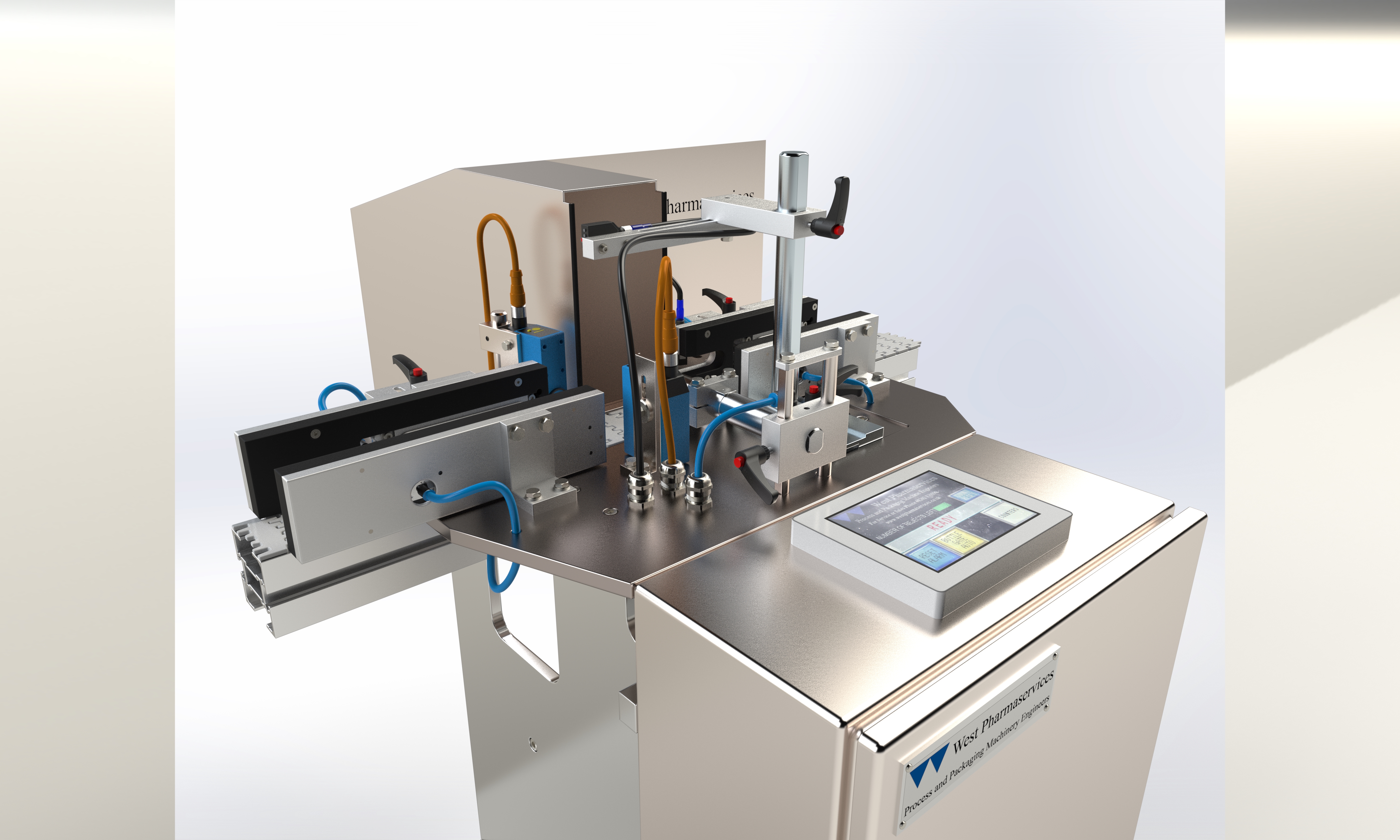

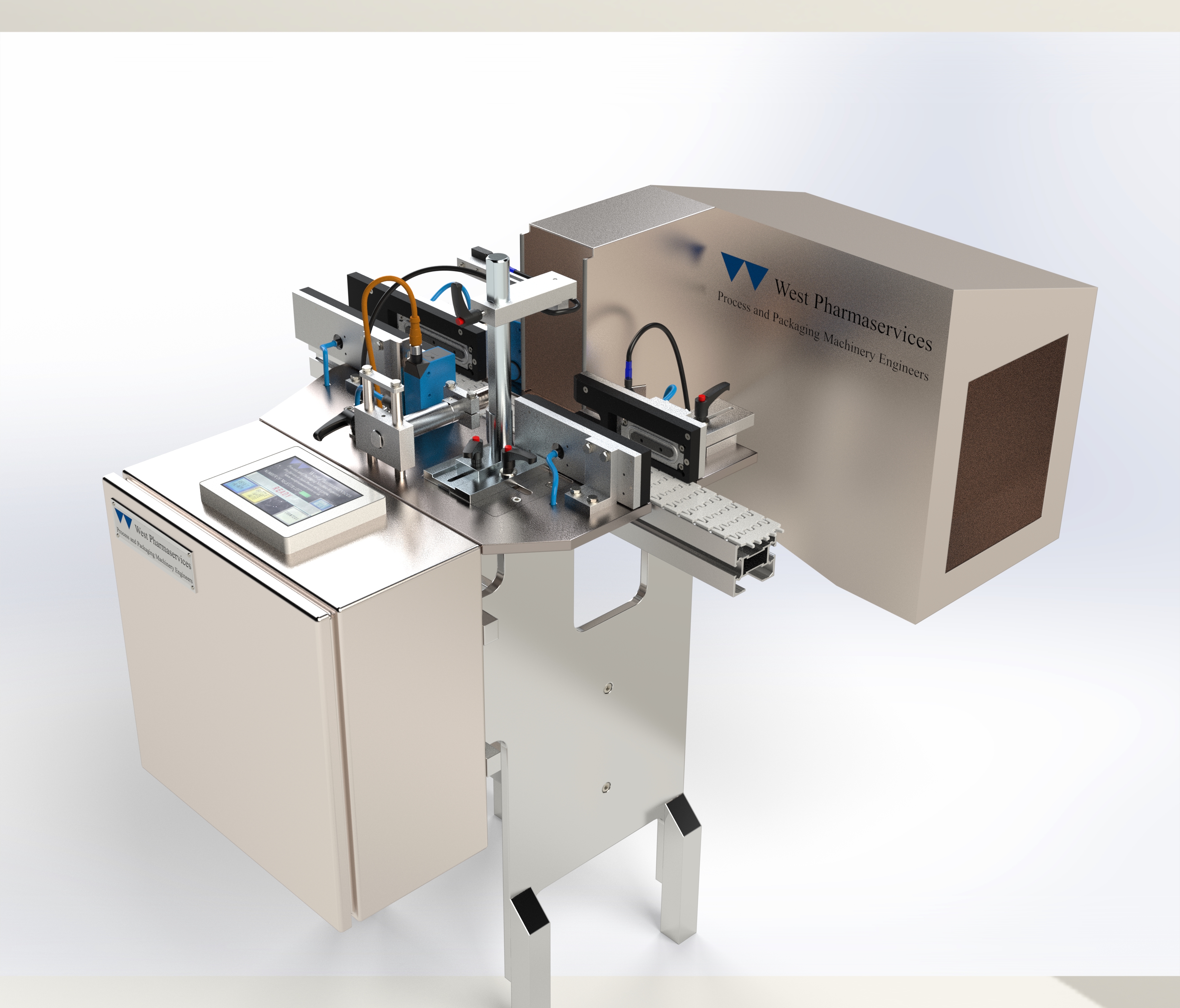

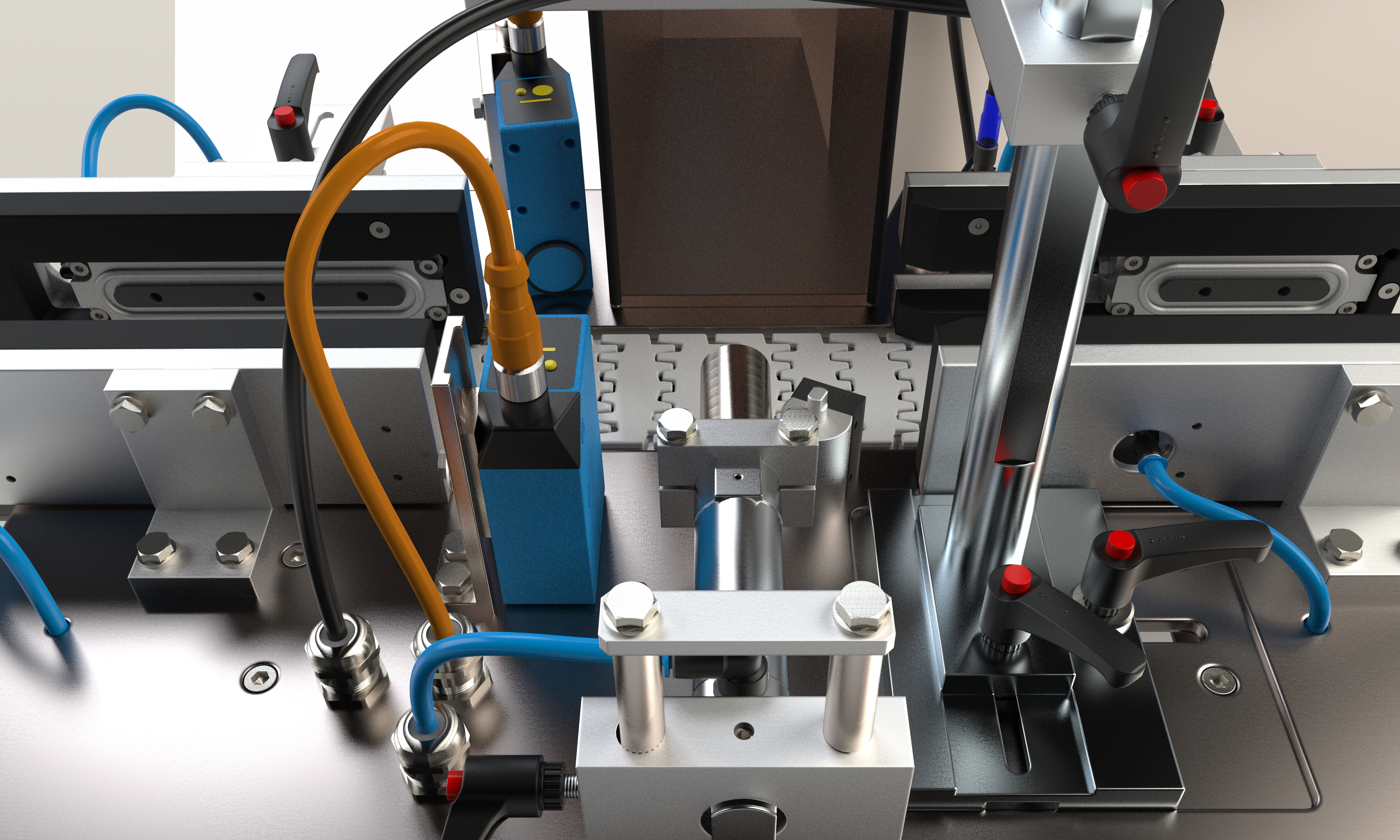

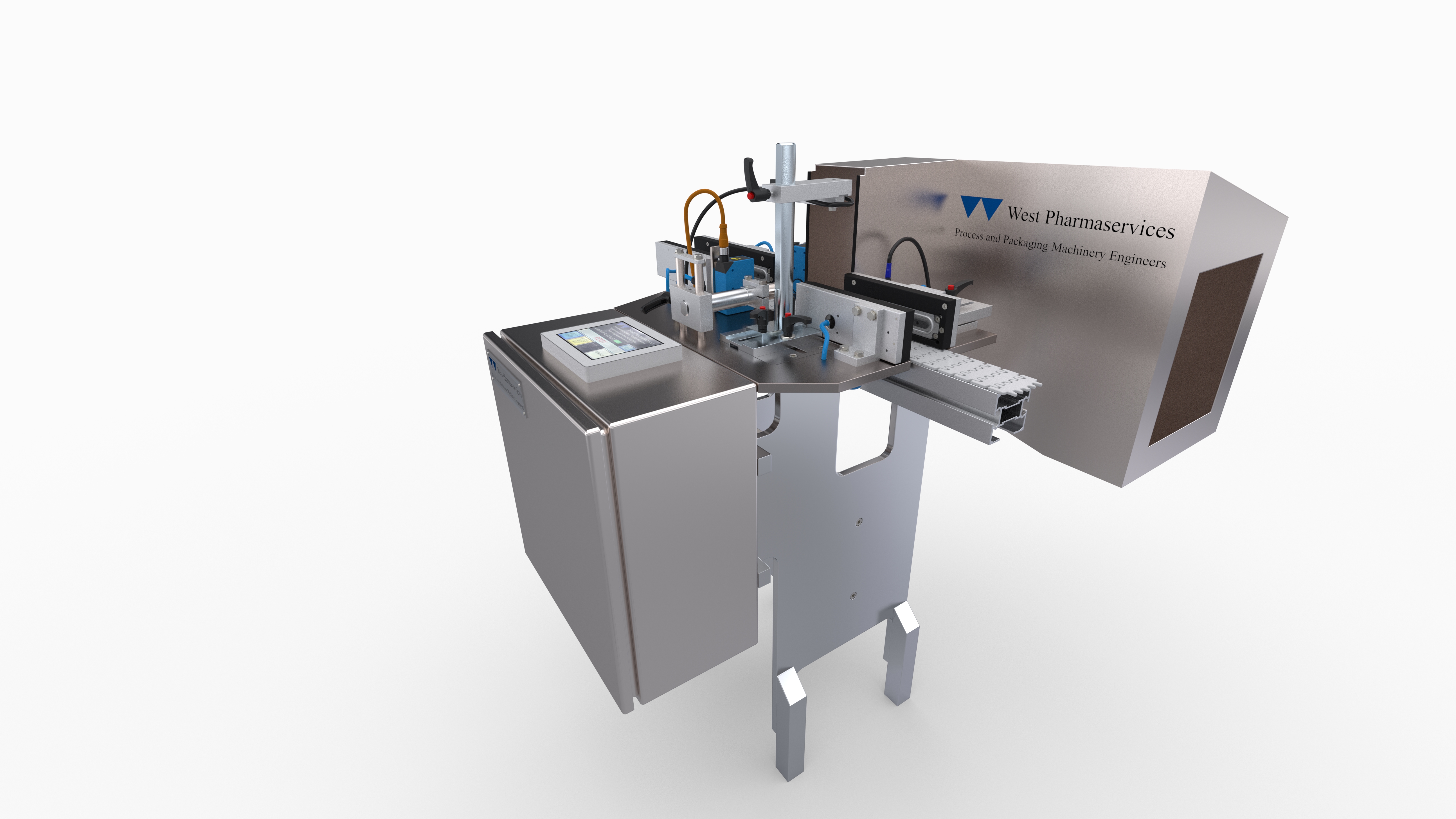

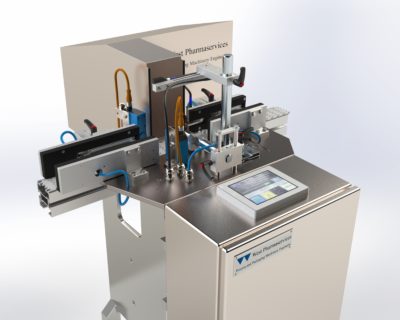

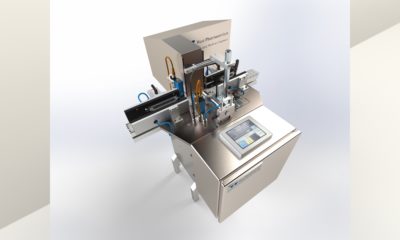

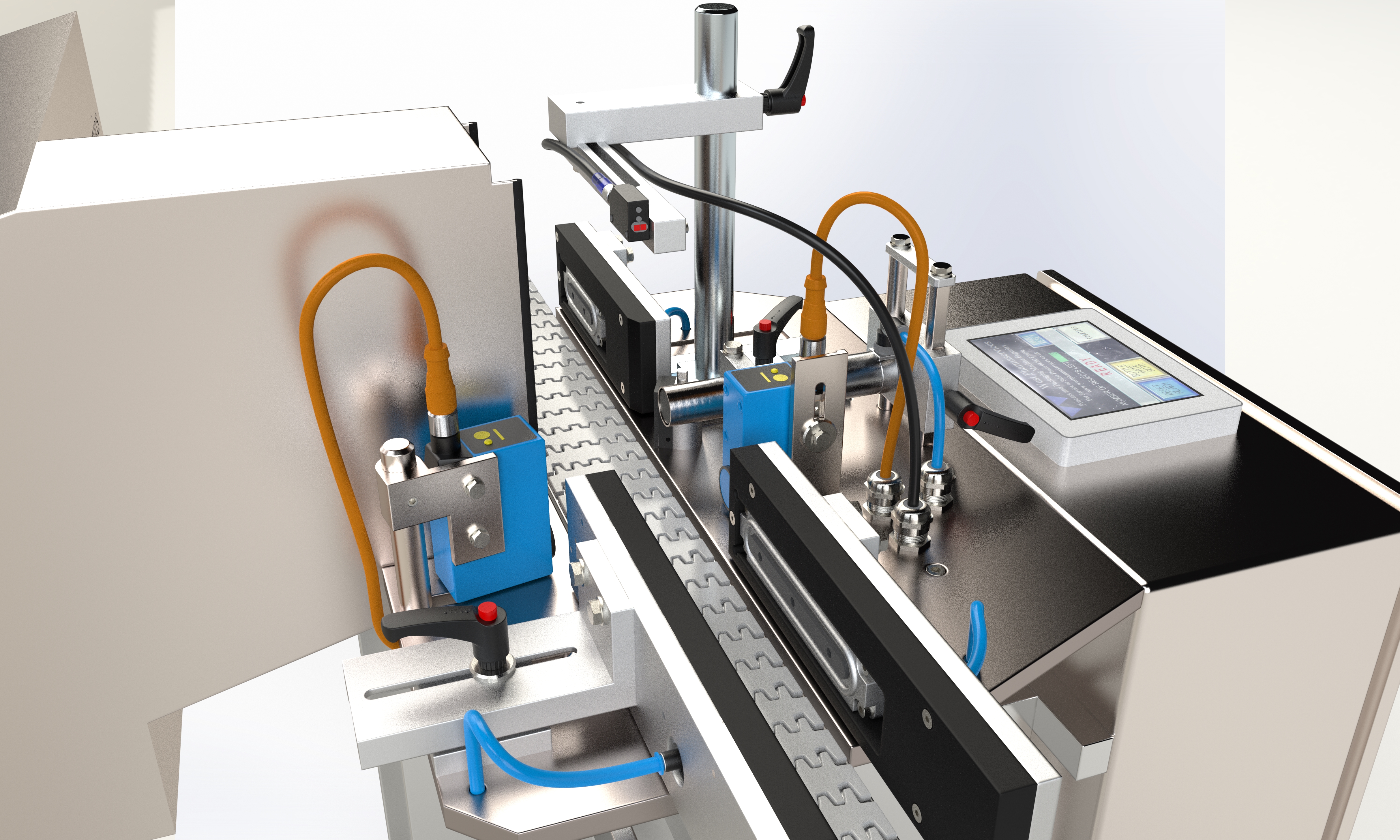

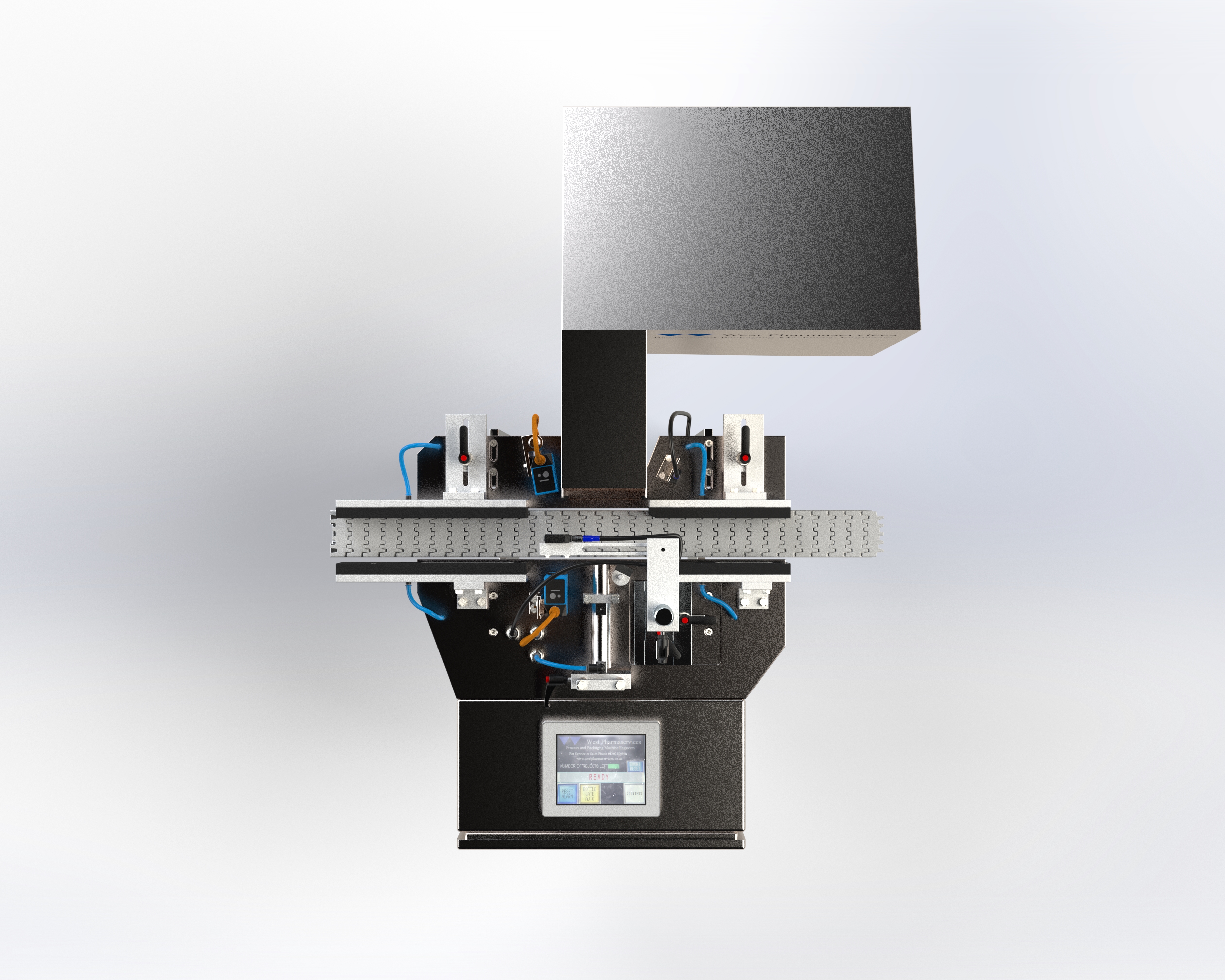

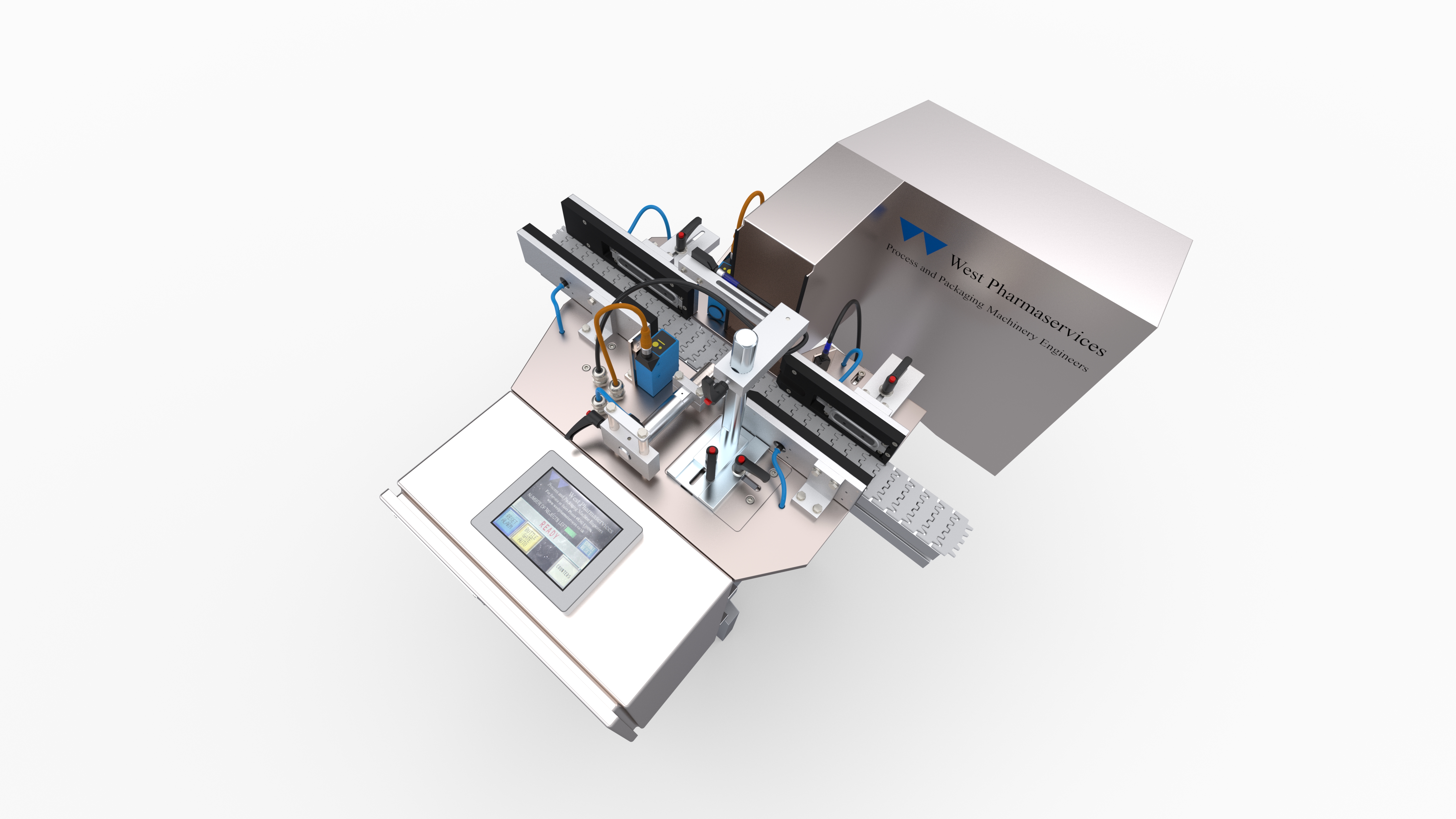

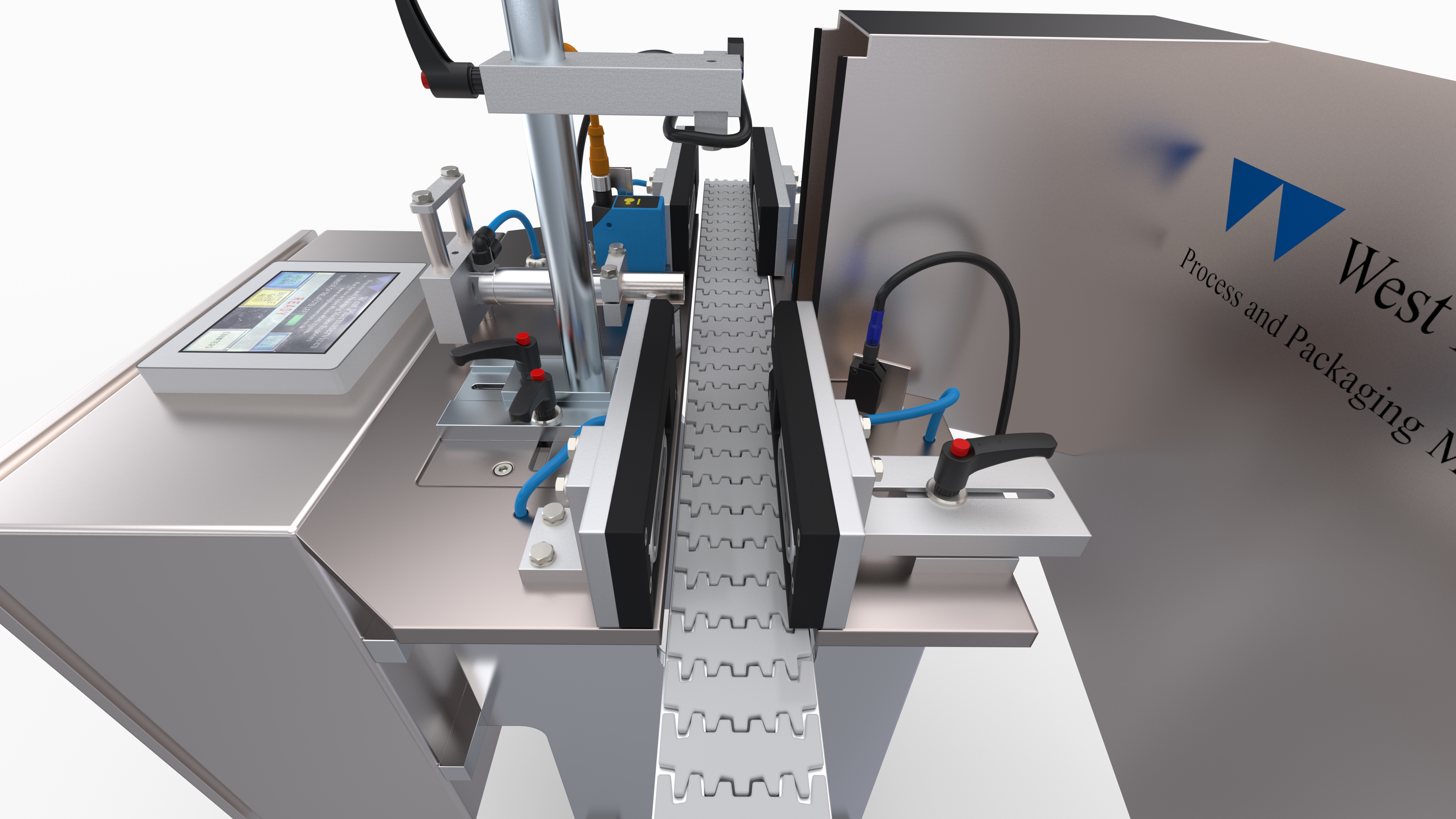

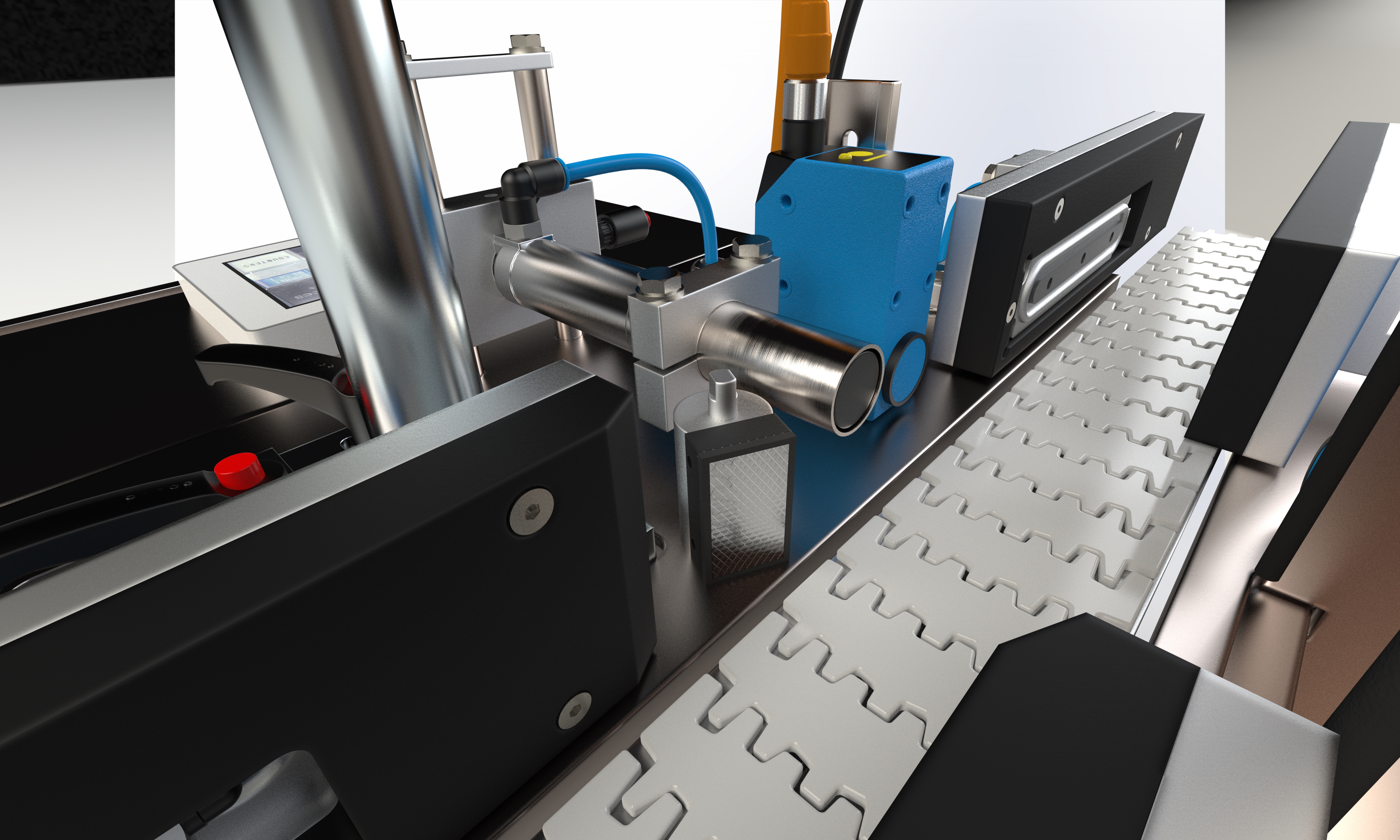

WEST LRS 50 MISSING LABEL DETECTION WITH REJECT
Label detection unit with reject facility.
Can be fitted into an existing line to reject bottles with missing labels.
The machine has been designed to accommodate a range of bottle sizes
The label rejection unit has been designed to Pharmaceutical standards, comply with cGMP requirements and comply with the European Falsified Medicines Directive (2011/62/EU).
All non-product contact parts are made from 303/304/316 grade stainless steel.
All plastic materials used in the machines construction are FDA approved.
The unit is fully CE marked
The electrical systems is designed as fail safe and for a safe re-start following power failure.
The system is manufactured to be easily cleanable and that there are no areas where product debris can collect.
The system is manufactured to facilitate easy line clearance
The system has been manufactured to allow quick change over of product size
Standard electric power supply – 240 V 50Hz
Installed power – 13 amp 1 phase power supply required
Compressed air pressure 6 Bar Max
Compressed air consumption 5 Nlt/h
Net Weight 35 kg
Reject bin
No change parts required

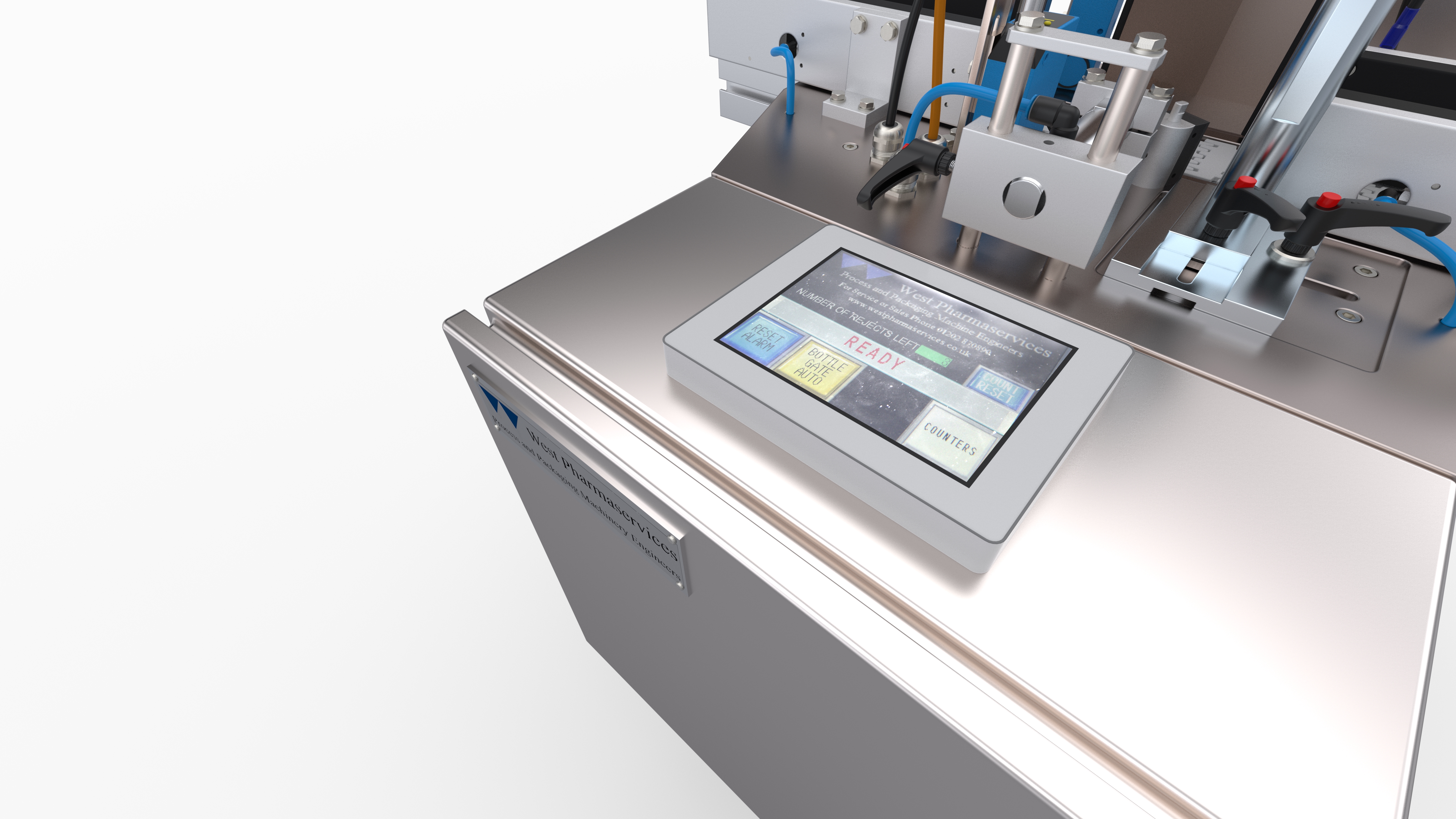

Pro-face HMI and WAGO PLC

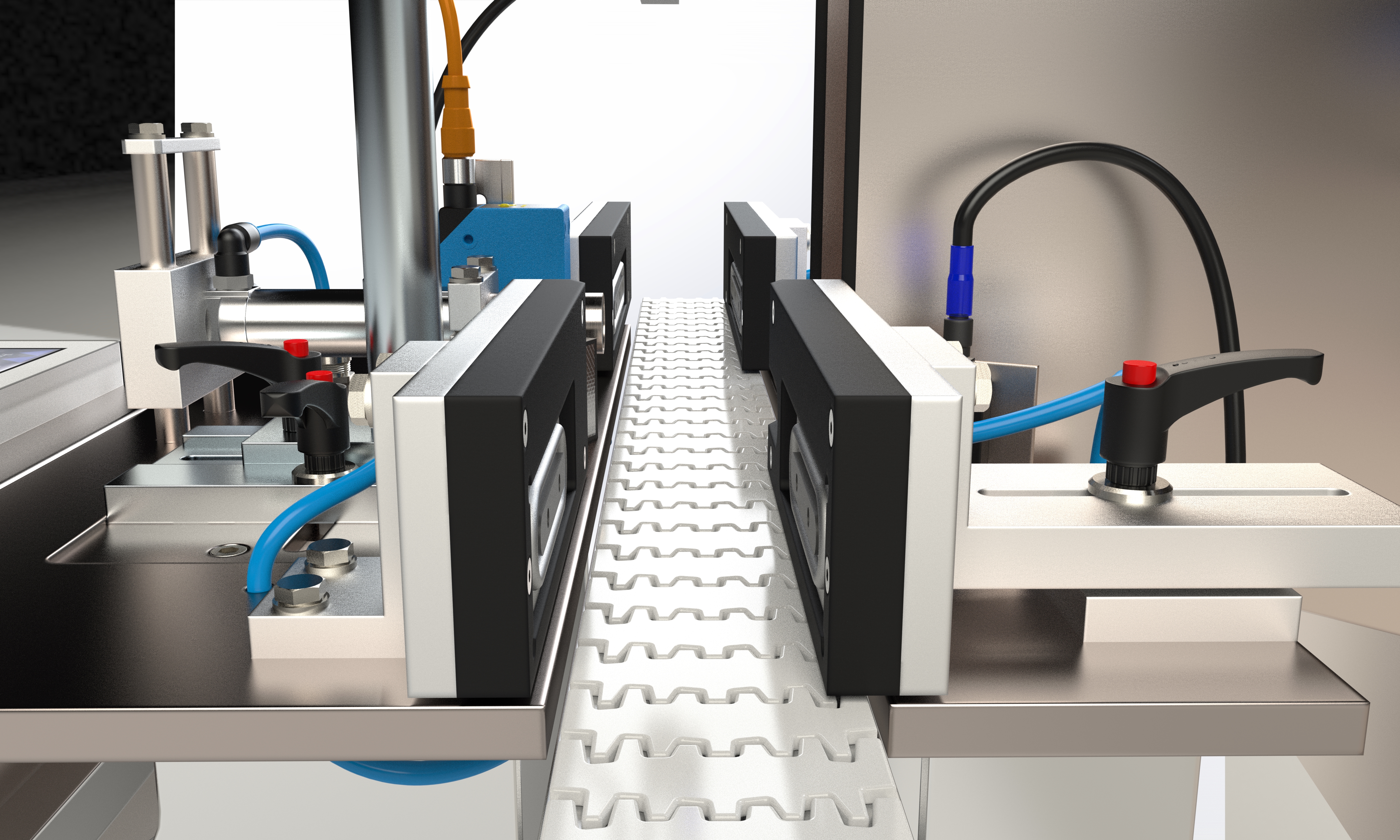

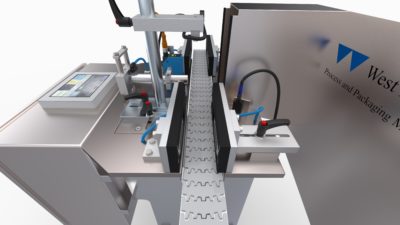

Can be installed over any existing conveyor system.
Please contact us for more information.
Phone: +44 (0) 1202 870 890
